T300 - Chicken Tractor Plans Construction - Chicken Trailer Plans

T300 - Chicken Tractor Plans Construction
Chicken Trailer Plans

...
Principles of design:
"Sustainability"_"Insulation"_"Ventilation"_"Easy to Clean"
...
Units: Inches - fractions
It tin comfortably concur xx - 25 chickens
...
Total province occupancy area: 10' 3"x6' 3"=64.0625 ft²
Total height: 9' four 11/16"
- Chicken Cage: 9' 5"x4' 2"=39.2361 ft²
- Nest boxes for 12 hens: 9' 5"x1' six 1/2"=12.109 ft²
Total mass of wood: 181 717 inches3 = 105 feet3
...
Dimensional lumber sizes:
4"x4" (Nominal)=3 1/2"x3 1/2" (Actual);
2"x6" (Nominal)=1 1/2"x5 1/2" (Actual);
2"x4" (Nominal)=1 1/2"x3 1/2" (Actual);
2"x2" (Nominal)=1 1/2"x1 1/2" (Actual);
1x2: 1"x2" (Nominal)=3/4"x1 1/2" (Actual);
1"x3" (Nominal)=3/4"x2 1/2" (Actual);
1"x1" (Nominal)=3/4"x3/4" (Actual);
1"x6" (Nominal)=3/4"x5 1/2" (Actual);
1"x8" (Nominal)=3/4"x7 1/4" (Actual);
1"x10" (Nominal)=3/4"x9 1/4" (Actual);
1"x12" (Nominal)=3/4"x11 1/4" (Actual);
Plywood 3/4" thickness actual=1" thickness nominal
...
The functional element - the build footstep ask - Table of Contents:

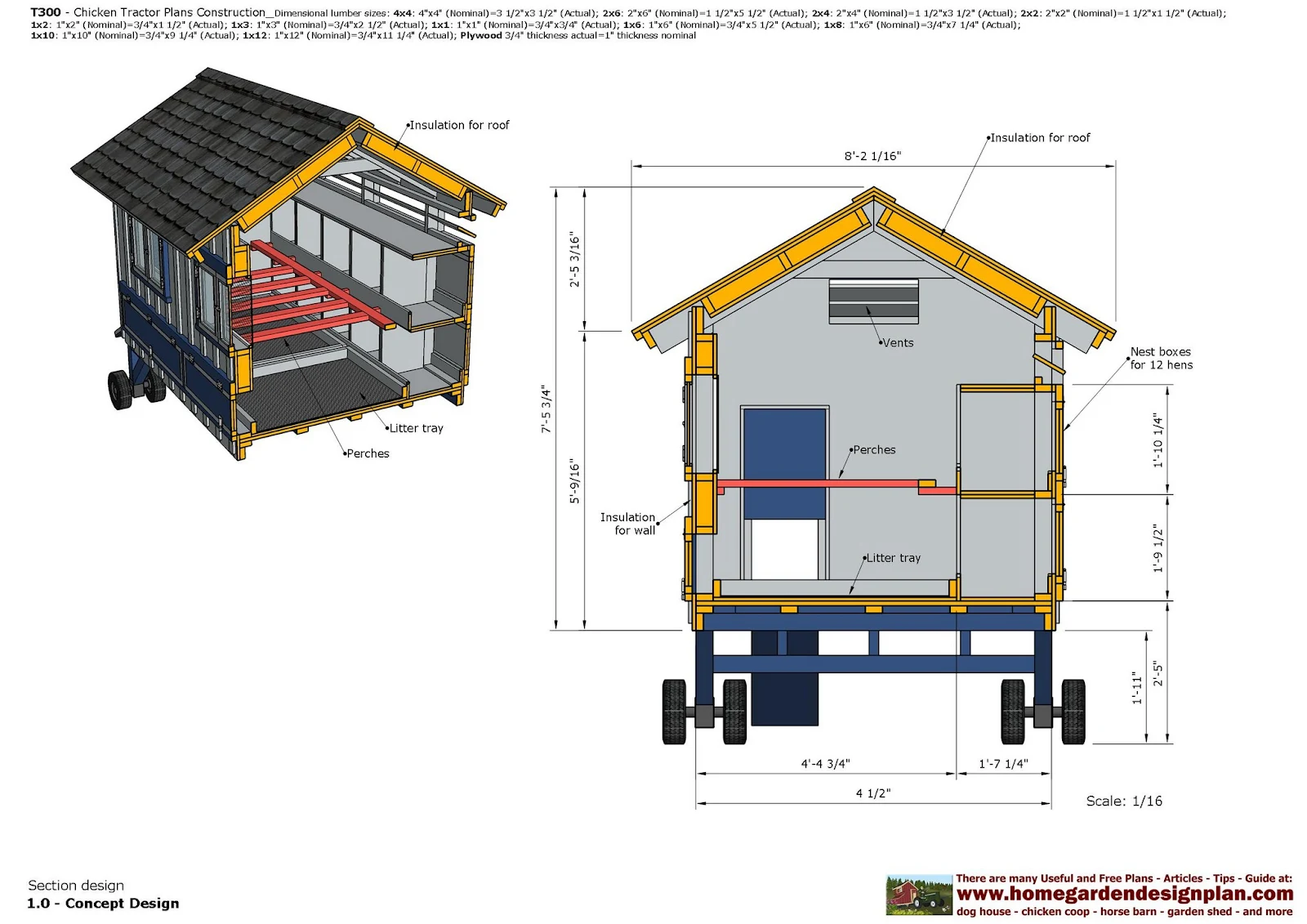

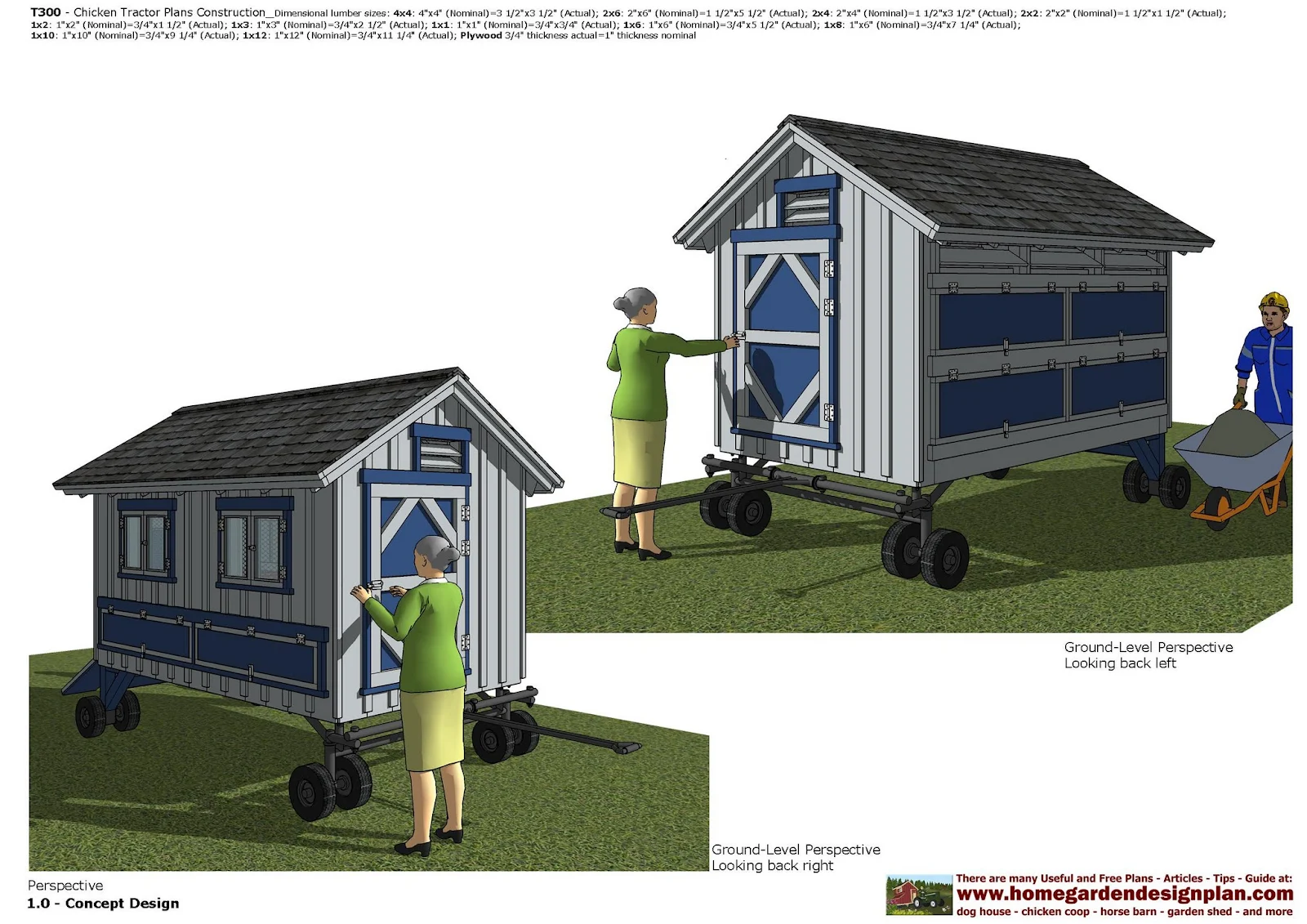

1.0 - Concept Design
2.0 - Building Floor
3.0 - Building Wheel as well as Steering
4.0 - Building Frame
5.0 - Building Nest Boxes
6.0 - Building Interior wall
7.0 - Building Perches
8.0 - Building Roof Beam
9.0 - Building Foam insulation for walls
10.0 - Building Exterior walls
11.0 - Building Door, Windows, Vents, Clean Out_Lid, Automatic chicken door
12.0 - Building Roof
13.0 - Building Litter tray
14.0 - Building Chicken Ramp
...











T300 - Chicken Tractor Plans Construction
Chicken Trailer Plans
...
(Newly Upgraded Version)
...
I'm upgrading the entire plan, as well as I e'er create so, I am reducing the mass of forest inwards structure as well as withal hand what nosotros want, to salve money, build faster, easier,
I am presenting a programme for a ameliorate agency alongside less drawing, to salve coin on printing as well as viewing time, download time,
I am next the suggestions as well as feedback from all of you,
...
Thank you lot real much!
Let popular off on rail my piece of employment to instruct alot of Free as well as Useful Plans
...
T300 - Chicken Tractor Plans Construction
Chicken Trailer Plans
