T100 - Chicken Tractor Plans - Chicken Trailer Plans Construction
...
Principles of design:
"Sustainability"_"Insulation"_"Ventilation"_"Easy to Clean"
...
Units: Inches - fractions
It tin comfortably concur 8 - 10 chickens
...
Nest boxes for two hens
Total province occupancy area: 7' two 1/4"x4' 1 1/4"=29.4987 ft²
Total height: 7' 1 1/4"
- Chicken Cage: 5' iv 3/4"x3' 10 1/4"=20.7964 ft²
- Nest boxes for two hens: 5' iv 3/4"x1' 8"=6.4236 ft²
Total majority of wood: 71231 inches3 = 41 feet3
...
Dimensional lumber sizes:4"x4" (Nominal)=3 1/2"x3 1/2" (Actual);
2"x4" (Nominal)=1 1/2"x3 1/2" (Actual);
2"x2" (Nominal)=1 1/2"x1 1/2" (Actual);
1x2: 1"x2" (Nominal)=3/4"x1 1/2" (Actual);
1"x3" (Nominal)=3/4"x2 1/2" (Actual);
1"x1" (Nominal)=3/4"x3/4" (Actual);
1"x6" (Nominal)=3/4"x5 1/2" (Actual);
1"x10" (Nominal)=3/4"x9 1/4" (Actual);
Plywood 3/4" thickness actual=1" thickness nominal
...
The functional component subdivision - the build footstep demand - Table of Contents:

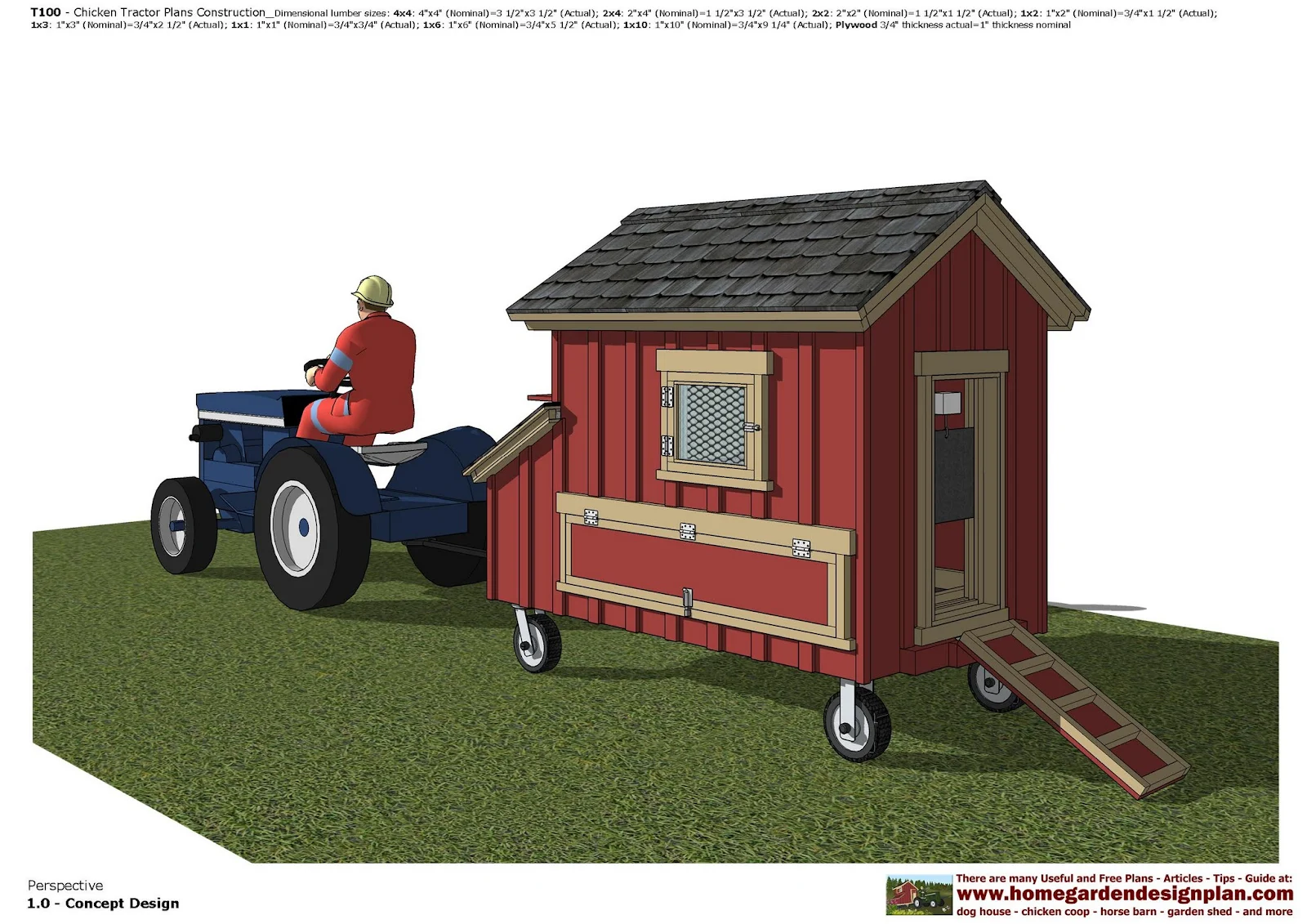

1.0 - Concept Design
2.0 - Building Floor
3.0 - Building Wheel together with Steering
4.0 - Building Frame
5.0 - Building Nest Boxes
6.0 - Building Interior wall
7.0 - Building Perches
8.0 - Building Roof Beam
9.0 - Building Foam insulation for walls
10.0 - Building Exterior walls
11.0 - Building Door, Windows, Vents, Clean Out_Lid, Automatic chicken door
12.0 - Building Roof
13.0 - Building Litter tray - Building Chicken Ramp
...
T100 - Chicken Tractor Plans - Chicken Trailer Plans Construction
...
(Newly Upgraded Version)
...
I'm upgrading the entire plan, together with I e'er create so, I am reducing the majority of woods inwards structure together with nonetheless accomplish what nosotros want, to relieve money, build faster, easier,
I am presenting a programme for a amend agency amongst less drawing, to relieve coin on printing together with viewing time, download time,
I am next the suggestions together with feedback from all of you,
...
Thank yous real much!
Let proceed rail my piece of employment to teach alot of Free together with Useful Plans
...
T100 - Chicken Tractor Plans - Chicken Trailer Plans Construction
